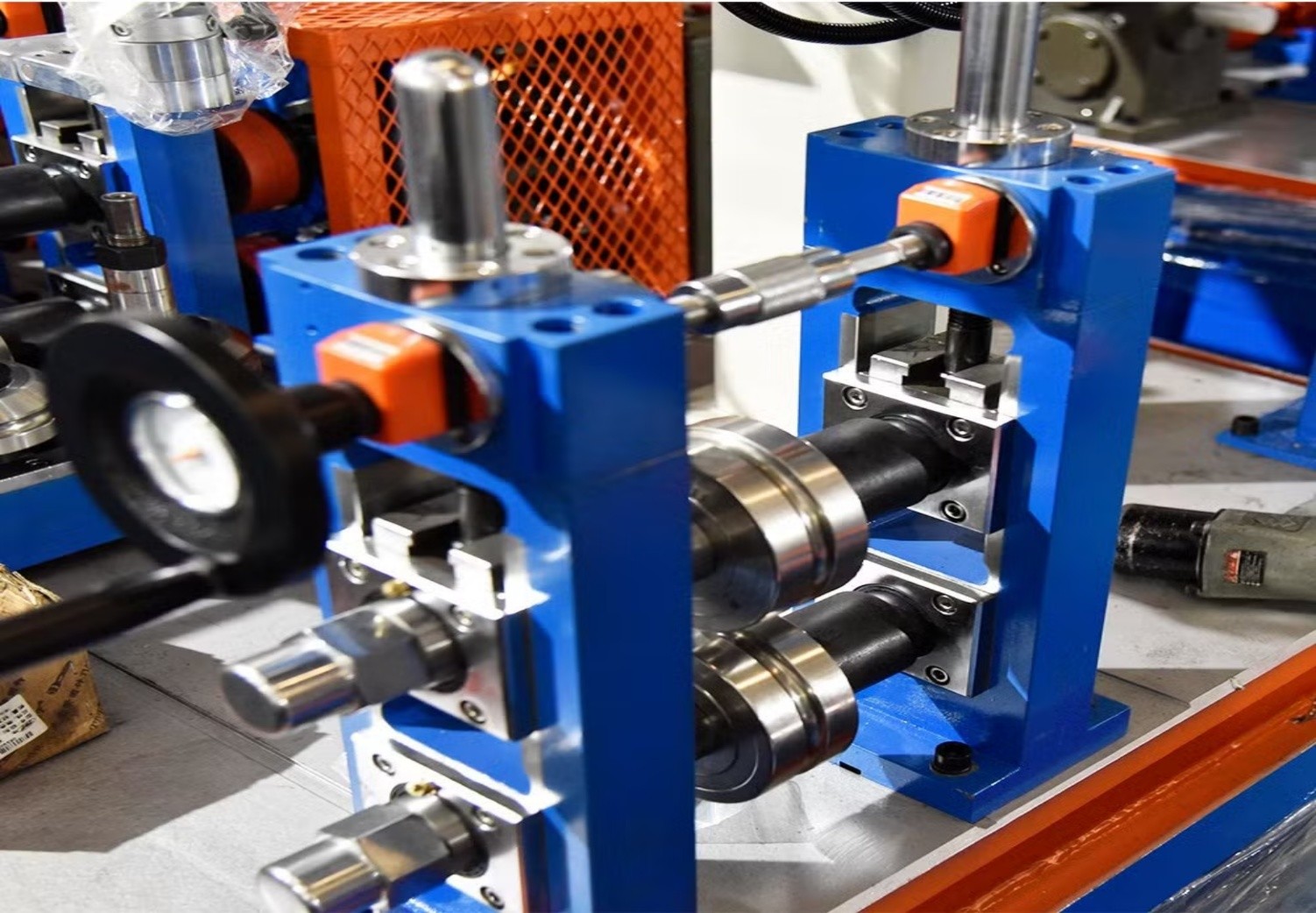

ONLINE BEAD ROLLING MACHINE
The stainless steel on line inside welded bead rolling equipment consists of fabricated leveling frame, hydraulic and pneumatic systems, Digital PLC fully automatic controlled electro-hydraulic and pneumatic system. This machine rolls down the welding bead, inside and outside. This machine is installed in line with a tube mill. Heavy duty machine for the rolling inside and outside of the welded tube, in order to produce tubes suitable for dairy and chemical applications. The machine is suitable to be installed on TIG and laser tube mills and is available in different dimensions.
ONLINE BEAD ROLLING MACHINE CHART
|
MODELS
|
Pipe Diameter (mm)
|
Thickness
(mm)
|
Production Speed
(m/min)
|
Power IN (KW)
|
|
SE-BR-01
|
ø12 – ø50
|
0.5 – 2.0
|
0 – 6
|
11
|
|
SE-BR-01
|
ø32 – ø76
|
0.5 – 3.0
|
0 – 6
|
11
|
|
SE-BR-01
|
ø50 – ø114
|
0.8 – 3.5
|
0 – 4
|
11
|
|
SE-BR-01
|
ø89 – ø168
|
1.5 – 3.0
|
0 – 5
|
15
|
|
SE-BR-01
|
ø127 – ø219
|
2.5 – 6.5
|
0 – 2
|
15
|
|
SE-BR-01
|
ø168 – ø273
|
2.5 – 8.0
|
0 – 1.5
|
15
|
FEATURES
- Precisely engineered
- High functionality
- Reliable operation
