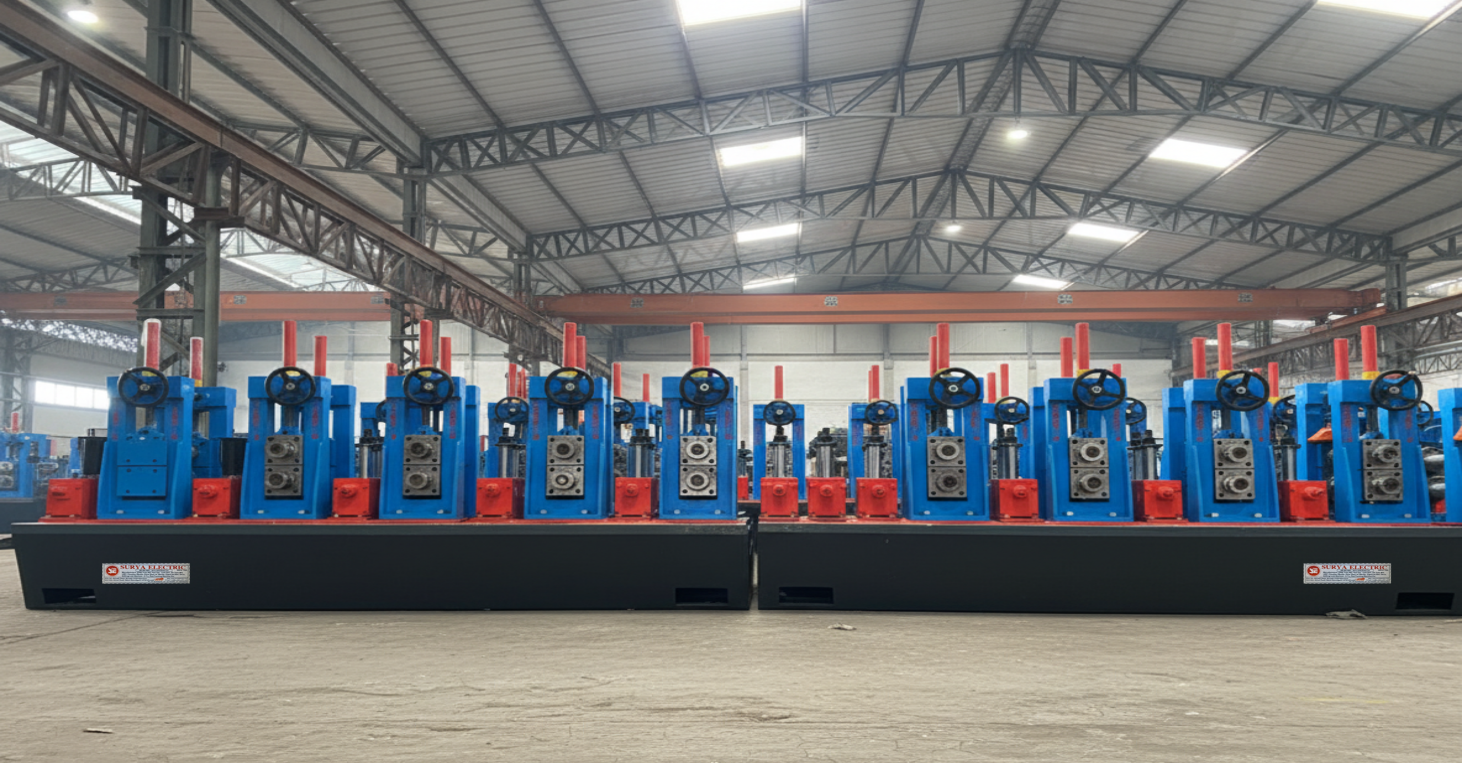

ERW Tube Mill
The Surya ERW Tube Mill stands out with its advanced high-frequency welding technology, delivering superior weld integrity and unmatched precision in tube manufacturing. This cutting-edge feature ensures consistently strong, defect-free tubes with excellent dimensional accuracy, reducing material waste and minimizing the need for rework. Its robust construction and automated control systems enable high-speed production while maintaining stringent quality standards, empowering manufacturers to meet increasing demand without compromising on reliability. Designed for versatility and durability, the Surya ERW Tube Mill is the definitive solution for industries requiring high-quality welded tubes, offering exceptional performance, efficiency, and cost-effectiveness in one comprehensive package.
| S.No. |
Nominal Size (Inch) |
Round Pipe OD (mm) |
Square (mm) |
Rectangle (mm) |
Wall Thickness (mm) |
Speed |
Production/Day (24 Hrs) |
| 1 |
- |
6 |
- |
- |
0.4 |
108 Mpm |
Average Production Approx 62-70 Metric Tons. |
| 2 |
1/8" |
10.3 |
- |
- |
1.73 |
105 Mpm |
- |
| 3 |
1/4" |
13.7 |
- |
- |
2.24 |
100 Mpm |
- |
| 4 |
1/2" |
21.3 |
16.5X16.5 17X17 16.7X16.7 |
16X17 18X15, 18X16 17X16 19X14, 19X15 20X13, 20X14 21X12, 21X13 22X11, 22X12 23X10, 23X11 24X9, 24X10 25X8, 25X9 26X7, 26X8 |
2.77 |
97 Mpm |
- |
| 5 |
3/4" |
26.7 |
21X21 20.5X20.5 |
22X20, 21X20 23X19, 23X18 24X18, 24X19 25X17 26X16 27X15 28X14 29X13 30X12 31X19 32X10, 32X9 |
2.87 |
95 Mpm |
- |
| 6 |
1" |
33.4 |
26X26 |
27X25 28X24 29X23 30X22 31X24 32X20 33X19 34X18 35X17 |
3.38 |
92 Mpm |
Average Product Approx 70-75 Metric Tons. |
| 7 |
1 1/4" |
42.2 |
33X33 32X32 32.5X32.5 |
33X32 34X31 35X30 36X29 37X28 |
3.56 |
90 Mpm |
- |
| 8 |
1 1/8" |
48.3 |
38X38 |
50X25 |
3.68 |
89 Mpm |
- |
| 9 |
2" |
60.3 |
47X47 |
50X44 49X45 48X46 |
3.91 |
87 Mpm |
- |
| 10 |
2 1/2" |
73 |
57.5X57.5 |
60X65 61X54 62X53 |
5.16 |
84 Mpm |
- |
| 11 |
- |
76.1 |
60X60 |
80X40 70X50 |
5.29 |
82 Mpm |
Average Production Approx 150-200 Metric Tons. |
| 12 |
3" |
88.9 |
72X72 |
96X48 80X60 |
5.49 |
80 Mpm |
- |
| 13 |
3 1/2" |
101.6 |
80X80 |
110X50 100X60 |
5.74 |
79 Mpm |
- |
| 14 |
4" |
114.3 |
90X90 90.5X90.5 |
91X91 121X60, 122X61 |
6.02 |
77 Mpm |
- |
| 15 |
5" |
141.3 |
111X111 110.5X110.5 |
112X110 113X109 |
6.55 |
62 Mpm |
Average Production Approx 250-450 Metric Tons. |
| 16 |
6" |
168.3 |
132X132 |
172X92 |
7.11 |
55 Mpm |
- |
| 17 |
8" |
219.1 |
172X172 |
174X170 184X160 194X150 |
8.18 |
37 Mpm |
- |
| 18 |
10" |
273 |
215X215 214X214 214.5X214.5 |
300X129 290X139 200X279 |
9.27 |
32 Mpm |
- |
| 19 |
12" |
323.8 |
254X254 253X253 |
300X208 290X218 280X228 |
10.31 |
27 Mpm |
Average Production Approx 450-750 Metric Tons. |
| 20 |
14" |
355.6 |
279X279 279.5X279.5 |
300X259 310X249 |
11.13 |
20 Mpm |
- |
| 21 |
16" |
406.4 |
319X319 |
400X238 450X188 410X228 |
12.7 |
18 Mpm |
- |
| 22 |
18" |
457 |
356X356 356.5X356.5 |
400X313 450X263 |
14.27 |
16 Mpm |
- |
| 23 |
20" |
508 |
399X399 |
400X398 500X298 450X348 |
15.09 |
14 Mpm |
- |
Note: These Pipe Details are average according to pipe size. Production and speed increase depending on strip thickness.
