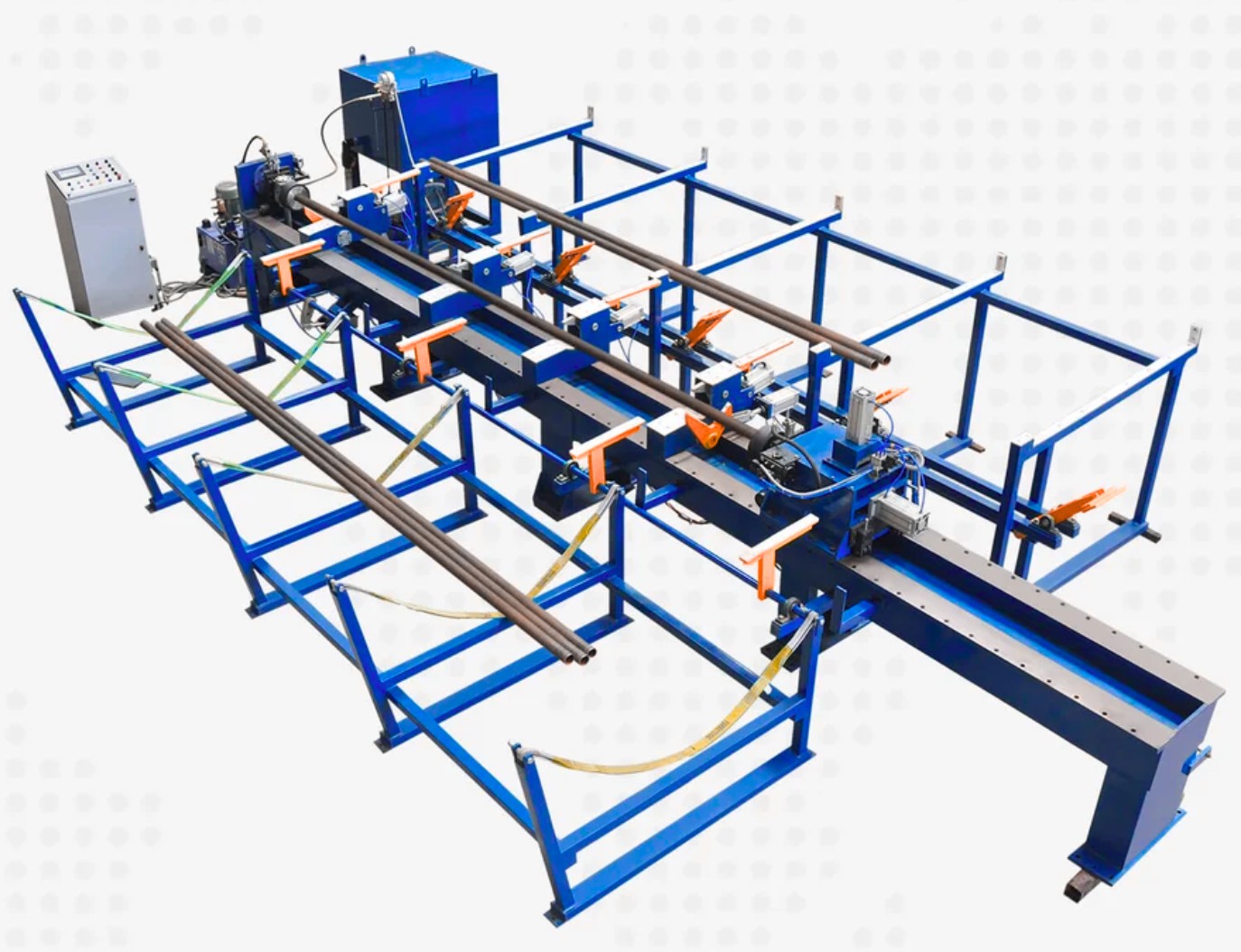

TUBE HYDROTESTER
Surya Electric offers Single/Triple type TUBE HYDROTESTER equipped with oil/water high pressure (up to 5000 psi) intensifiers, automatic handling systems and chart type pressure recorders according to API/ASTM/BS standards.
A fully automatic tube Hydrotesting Machine which requires minimal maintenance. All the operations are hydraulic and trouble free. Faster size changing, parameter setting and trouble shooting are standard features of this PLC controlled machine. Single head, Triple head and Five head types are the available options.
We are reputed company in the market for Tube Hydrotesters. These products are available in diverse patterns that meet on customers demand. It is made by the highly knowledgeable experts who have prosperous industry knowledge. Our products are extremely used in the market owing to their robust design and low maintenance. In addition, we present these products at affordable prices.
Our Tube Hydrotesters are renowned in the market for their rust free nature, superior finish, and reliable performance. These products are manufactured using the top quality raw material that is procured from trustworthy vendors of market. In addition, quality checkers also check these products on diverse industry parameters to make sure the reliable performance.
|
MODEL
|
TUBE OD (mm)
|
TUBE THICKNESS
(mm)
|
MAXIMUM TEST
PRESSURE (m/min)
|
|
SE-HT -01
|
12.7 – 76.0
|
0.8 – 3.5
|
Upto 3000
|
|
SE-HT -02 (S/T)
|
21.3 – 114.3
|
1.2 – 5.4
|
Upto 3000
|
|
SE-HT -03
|
60.3 – 168.3
|
1.6 – 7.1
|
Upto 5000
|
|
SE-HT -04
|
88.9 – 219.3
|
3.0 – 8.2
|
Upto 5000
|
FEATURES:-
- OD Sealing Type.
- Oil & Water Intensifier.
- Continuous Chart Type Pressure Recorders & SG Transducers for each tube results.
- Closed Circuit Blocking Heads for automatic balancing of end thrust.
- Quick Change Toolings.
- Computerised Data Acquisition System.
- Disc/Screw Roll/Chain cross transfer type Fube Feeding System.
