for Stainless Steel (SE) Tubes and Pipes

Surya Electric offers high quality tube mill, Pipe mill, ss tube mill, ms tube mill, ss pipe mill, ss tube mill and other allied accessories.

Stainless steel is an alloy of Iron with a minimum of 10.5% Chromium. Chromium produces a thin layer of oxide on the surface of the steel known as the ‘passive layer’. This prevents any further corrosion of the surface. Increasing the amount of Chromium gives an increased resistance to corrosion.

Stainless steel also contains varying amounts of Carbon, Silicon and Manganese. Other elements such as Nickel and Molybdenum may be added to impart other useful properties such as enhanced formability and increased corrosion resistance.

Stainless steels of various kinds are used in thousands of applications. The following gives a flavor of the full range: Domestic, Architectural/Civil Engineering, Transport, Chemical/Pharmaceutical, Oil and Gas, Medical, Food, Drinking water appliances and other many more.

There are two types of the STAINLESS STEEL MACHINES

• OD-SERIES STAINLESS STEEL TUBE / PIPE MAKING MACHINE
• NB-SERIES STAINLESS STEEL TUBE / PIPE MAKING MACHINE

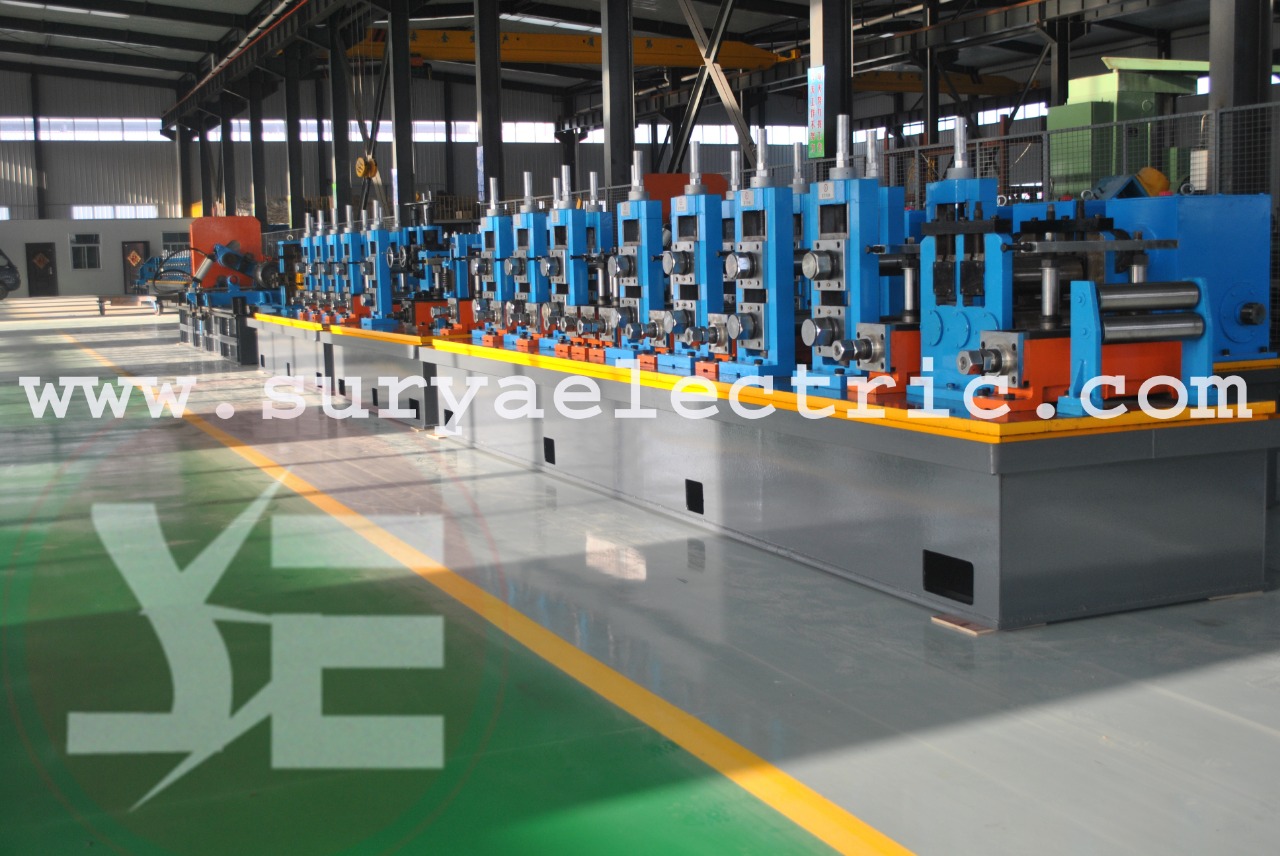

The Tubes/Pipes made in this machine basically uses cold roll forming technology to give desired shape to the raw material strip. The strip grade can be 200, 300, 400 series. The roll formed open section of the strip is welded longitudinal by TIG welding process or in High Speed by Solid State High Frequency Induction Welder. Then the Welded Pipe/Tube seam is finished on line by tool or grinding process. The Pipe/Tube is then cooled down by coolant water.

There is a Sizing Section. The Sizing section of the Tube/Pipe Mill shapes the Tube/Pipe for desired perfect shape. Shapes of the Tube/Pipe made by this machine depends on the desire of the customer.

Machine has the capacity to make different shapes of pipe like Round/Circular, Rectangular as well as Square. There is a cutting section in the machine which is used to slice the Pipe/Tube. The cutting section cuts the pipe/tube for desired length online by automatic cutting car. The run out table takes out the cut length pipe/tube in the collection pit.

After all these process the manufactured products are taken out in the market for desired use.

SE (Stainless steel) tube mill N.B. Series is called SE (Stainless Steel) Tube Mill N.B. Series because it uses SE (Stainless Steel) Coil for manufacturing of Tube/Pipe. The Tubes/Pipes made in this machine basically uses cold roll forming technology to give desired shape to the raw material strip.

The strip grade can be 200, 300, 400 series. The roll formed open section of the strip is welded longitudinal by TIG welding process or in High Speed by Solid State High Frequency Induction Welder. Then the Welded Pipe/Tube seam is finished on line by tool or grinding process. The Pipe/Tube is then cooled down by coolant water.

There is a Sizing Section also. The Sizing section of the Tube/Pipe Mill shapes the Tube/Pipe for desired perfect shape. Shapes of the Tube/Pipe made by this machine depends on the desire of the customer. Machine has the capacity to make different shapes of pipe like Round/Circular, Rectangular as well as Square.

There is a cutting section in the machine which is used to slice the Pipe/Tube. The cutting section cuts the pipe/tube for desired length online by automatic cutting car. The run out table takes out the cut length pipe/tube in the collection pit. After all these process the manufactured products are taken out in the market for desired use.
