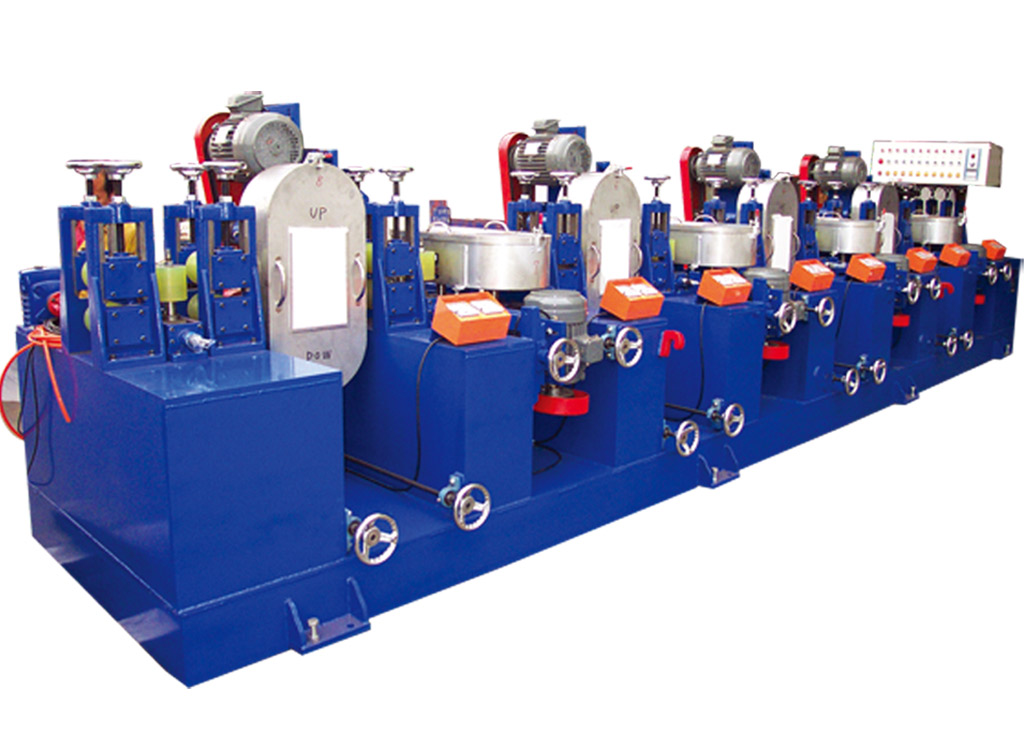

PIPE POLISHING MACHINE
Polishing Machines such as Centerless Polishing Machines, Flat Polishing Machines, Square Pipe Polishing Machines. These are assembled using quality component and widely appreciated for compact & rigid design. Designed in compliance with international quality standards, this machine is available in different STANDARD MODELs such as single head, two head, three head, four head and multi head machines.
Pipe polishing Machines ensure quality & high volume production. Our polishing machine is available in various forms and used for polishing round bar, tube, square tube, square bar, flat component, press part, fine blanked parts, iron sole plate, motorcycle and bicycle wheel rim.
PIPE POLISHING MACHINE CHART
|
Model
|
Polishing Wheels
|
Total Power ( KW )
|
Diameter of head spindle (mm)
|
Polishing Range (mm)
|
Speed (m/min)
|
Machine Size (L x W)
|
|
6 Wheel Heads
Round PIPE POLISHING MACHINE
|
6
|
29.5
|
ø 36
|
ø8 – ø51
|
0 – 20
|
4000 X 1250
|
|
8 Wheel Heads
Round PIPE POLISHING MACHINE
|
8
|
37.5
|
ø 36
|
ø8 – ø51
|
0 – 20
|
5300 X 1250
|
|
10 Wheel Heads
Round PIPE POLISHING MACHINE
|
10
|
45.5
|
ø 36
|
ø16 – ø76
|
0 – 20
|
7000 X 1300
|
|
10 Wheel Heads
Big Round PIPE POLISHING MACHINE
|
10
|
60.5
|
ø 36
|
ø38 – ø114
|
0 – 18
|
7200 X 1500
|
|
10 Wheel Heads Extra Big
Round PIPE POLISHING MACHINE
|
10
|
82.5
|
ø 36
|
ø76 – ø219
|
0 – 15
|
7300 X 1600
|
|
12 Wheel Heads Square &
Rectangle PIPE POLISHING MACHINE
|
12
|
48.5
|
ø 36
|
F10 x F10 – F90 x F90
|
0 – 15
|
7300 X 1500
|
|
28 Wheel Heads Square &
Rectangle PIPE POLISHING MACHINE
|
28
|
117.5
|
ø 36
|
F10 x F10 – F90 x F90
|
4 – 35
|
10500 X 1500
|
|
32 Wheel Heads Square &
Rectangle PIPE POLISHING MACHINE
|
32
|
133.5
|
ø 36
|
F10 x F10 – F90 x F90
|
4 – 35
|
11700 X 1500
|
FEATURES
- High efficiency, Compact and rigid design, Durable & Long service life.
- Easy to operate.
- Robust construction.
- Less maintenance.
- Easy to replace the polishing materials, save working hour and increase efficiency.
Stainless Steel Square Pipe Polishing Machine characteristic:
- Increase 4 group cant polished,square and rectangle pipe brightness improves 10%
- Polishing machine useful life increased to 10-15 years
- Machine weight increase 16T, improving the stability of equipment
- Polishing with a rubber wheel, high temperature ,strong wear resistance
